Name: Bridges Resilience Results

Display Field: Route_Name

Type: Feature Layer

Geometry Type: esriGeometryPoint

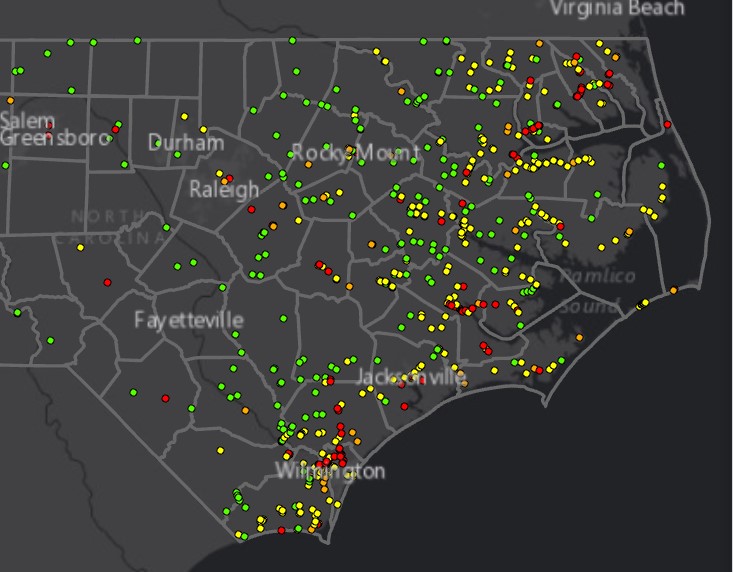

Description: A total of 848 bridges were analyzed for their vulnerability to inland flood, coastal flood, and geohazards. This data set is limited to NBI bridges on North Carolina primary roads, Only bridges exposed to at least one natural hazard are included. NBI bridge data was joined to the NCDOT structures data. The combined bridge data was intersected with flood data from NCDOT's resilience applications (https://www.ncdot-raft.info/applications.php), i.e., the Roadway Inundation Tool (RIT) 2.0 for inland flooding, and the Coastal Roadway Inundation Simulator (CRIS) for coastal flooding. In addition, each bridge was intersected with layer representing NCDOT's Geotechnical Asset Management (GAM) database. The sensitivity assessment for bridges was derived from the condition state for structures from Natural Bridge Inventory (NBI) items. For bridges with known foundation where NBI Item 113 Scour Critical is not equal to “U”, a matrix intersecting NBI Item 113 with NBI Item 60 Substructure Condition produced the sensitivity score. The final prioritization score is the sum of exposure scores for flooding and geohazards, criticality, sensitivity, whether the bridge overlaps a State Transportation Improvement Plan (STIP) project. For a complete discussion of the resilience analysis and scoring process, see Appendix C of the NCDOT 2023 RIP.

Copyright Text: Source data is (1) NCDOT structures spatial data at https://www.nconemap.gov/maps/7367c33b80f346178ea5e158ec4d5b68/explore and (2) Federal Highway Administration, National Bridge Inventory at https://www.fhwa.dot.gov/bridge/nbi.cfm

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 448079.98209298827
YMin: 48541.38348771476
XMax: 3004973.9676070795
YMax: 1063741.7003551533
Spatial Reference: 102719  (2264)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: priority_idx
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: 3
  Label: 3
  Description: N/A
  Symbol:
  Style: esriSMSCircle
  Color: [128, 0, 255, 255]
  Size: 4.0
  Angle: 0.0
  XOffset: 0
  YOffset: 0
  Outline:
  [0, 0, 0, 255] Width: 0
• Value: 4
  Label: 4
  Description: N/A
  Symbol:
  Style: esriSMSCircle
  Color: [0, 47, 255, 255]
  Size: 4.0
  Angle: 0.0
  XOffset: 0
  YOffset: 0
  Outline:
  [0, 0, 0, 255] Width: 0
• Value: 5
  Label: 5
  Description: N/A
  Symbol:
  Style: esriSMSCircle
  Color: [0, 255, 187, 255]
  Size: 4.0
  Angle: 0.0
  XOffset: 0
  YOffset: 0
  Outline:
  [0, 0, 0, 255] Width: 0
• Value: 6
  Label: 6
  Description: N/A
  Symbol:
  Style: esriSMSCircle
  Color: [110, 255, 0, 255]
  Size: 4.0
  Angle: 0.0
  XOffset: 0
  YOffset: 0
  Outline:
  [0, 0, 0, 255] Width: 0
• Value: 7
  Label: 7
  Description: N/A
  Symbol:
  Style: esriSMSCircle
  Color: [234, 255, 0, 255]
  Size: 4.0
  Angle: 0.0
  XOffset: 0
  YOffset: 0
  Outline:
  [0, 0, 0, 255] Width: 0
• Value: 8
  Label: 8
  Description: N/A
  Symbol:
  Style: esriSMSCircle
  Color: [255, 204, 0, 255]
  Size: 4.0
  Angle: 0.0
  XOffset: 0
  YOffset: 0
  Outline:
  [0, 0, 0, 255] Width: 0
• Value: 9
  Label: 9
  Description: N/A
  Symbol:
  Style: esriSMSCircle
  Color: [255, 119, 0, 255]
  Size: 4.0
  Angle: 0.0
  XOffset: 0
  YOffset: 0
  Outline:
  [0, 0, 0, 255] Width: 0
• Value: 10
  Label: 10
  Description: N/A
  Symbol:
  Style: esriSMSCircle
  Color: [255, 0, 0, 255]
  Size: 4.0
  Angle: 0.0
  XOffset: 0
  YOffset: 0
  Outline:
  [0, 0, 0, 255] Width: 0
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• asset_class ( type: esriFieldTypeString, alias: Asset Class, length: 10 )
• RouteID ( type: esriFieldTypeString, alias: RouteID, length: 255 )
• Route_Name ( type: esriFieldTypeString, alias: Route_Name, length: 50 )
• STIP_ID ( type: esriFieldTypeString, alias: STIP_ID, length: 10 )
• MEAN_BeginMp1 ( type: esriFieldTypeDouble, alias: MEAN_BeginMp1 )
• MEAN_EndMp1 ( type: esriFieldTypeDouble, alias: MEAN_EndMp1 )
• depth_10 ( type: esriFieldTypeDouble, alias: depth_10 )
• depth_25 ( type: esriFieldTypeDouble, alias: depth_25 )
• depth_50 ( type: esriFieldTypeDouble, alias: depth_50 )
• depth_100 ( type: esriFieldTypeDouble, alias: depth_100 )
• depth_500 ( type: esriFieldTypeDouble, alias: depth_500 )
• e_10 ( type: esriFieldTypeSmallInteger, alias: e_10 )
• e_25 ( type: esriFieldTypeSmallInteger, alias: e_25 )
• e_50 ( type: esriFieldTypeSmallInteger, alias: e_50 )
• e_100 ( type: esriFieldTypeSmallInteger, alias: e_100 )
• e_500 ( type: esriFieldTypeSmallInteger, alias: e_500 )
• flood_exp_idx ( type: esriFieldTypeSmallInteger, alias: Flood Exposure Index )
• SLRF_6 ( type: esriFieldTypeSmallInteger, alias: SLRF 6 ft )
• SLRF_16 ( type: esriFieldTypeSmallInteger, alias: SLRF 16 ft )
• SLRF_35 ( type: esriFieldTypeSmallInteger, alias: SLRF 35 ft )
• SLRF_Exposure ( type: esriFieldTypeSmallInteger, alias: SLRF Exposure )
• GAM_rating ( type: esriFieldTypeDouble, alias: GAM_Rating )
• GAM_Exposure ( type: esriFieldTypeSmallInteger, alias: GAM Exposure )
• SCOUR_CRITICAL_113 ( type: esriFieldTypeString, alias: Scour Critical Bridges, length: 2 )
• SUBSTRUCTURE_COND_060 ( type: esriFieldTypeString, alias: Substructure, length: 2 )
• CHANNEL_COND_061 ( type: esriFieldTypeString, alias: Channel and Channel Protection, length: 2 )
• sensitivity_idx ( type: esriFieldTypeSmallInteger, alias: Sensitivity Index )
• Condition ( type: esriFieldTypeString, alias: Condition, length: 255 )
• Criticality_Score ( type: esriFieldTypeSmallInteger, alias: Criticality_Score_ )
• priority_idx ( type: esriFieldTypeSmallInteger, alias: Priority Index )
• BRDG_NBR ( type: esriFieldTypeString, alias: BRDG_NBR, length: 6 )
• BSIP_BRDG_ ( type: esriFieldTypeString, alias: BSIP_BRDG_, length: 7 )
• STRUCTURE_NUMBER_008 ( type: esriFieldTypeString, alias: Structure Number, length: 30 )
• JOINFIELD ( type: esriFieldTypeString, alias: JOINFIELD, length: 255 )
• NBIJoinField ( type: esriFieldTypeString, alias: NBIJoinField, length: 255 )
• struc_number_FLG ( type: esriFieldTypeSmallInteger, alias: struc_number_FLG )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• created_user ( type: esriFieldTypeString, alias: created_user, length: 255 )
• created_date ( type: esriFieldTypeDate, alias: created_date, length: 8 )
• last_edited_user ( type: esriFieldTypeString, alias: last_edited_user, length: 255 )
• last_edited_date ( type: esriFieldTypeDate, alias: last_edited_date, length: 8 )
